型 號：YC-HSP540D
產 地：北京
生產廠家：北京儀創時代科技有限公司
用 途：用于測量混凝土試件在一定環境條件下，硬化過程中長度（體積）發生變化的專用儀器。

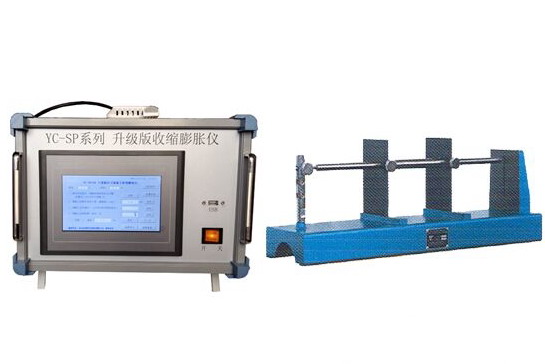

Device name：Upgraded Horizontal Shrinkage Expansion Instrument
Model：YC-HSP540D
Origin：Beijing
Purpose：A special instrument for measuring the change of length (volume) of concrete specimens during hardening under certain environmental conditions.
型號：YC-HSP540D
用途：用于測量混凝土試件在一定環境條件下，硬化過程中長度（體積）發生變化的專用儀器，可為建筑科學研究院所、教育部門、設計和施工單位對砊的特性進行研究、教育、質量控制和檢測提供可靠依據。
執行標準：
GB/T50082-2009《普通混凝土長期性能和耐久性能試驗方法標準》
現有臥式混凝土收縮膨脹儀存在如下不足：
（1）標準中校準桿材質建議選擇硬鋼或石英玻璃材質制作，但目前市場上的校準桿基本上都為不銹鋼材質，不銹鋼校準桿的線膨脹系數很大，易因溫度波動影響造成誤差。
（2）千分表精度差，即使選用業內較好的電子千分表也有±3um的測量誤差，一般的千分表誤差在±5um以上，這對于混凝土試件后期收縮量本來就很小而言，會造成很大的誤差。
（3）試驗過程人工讀數記錄，易因人為筆誤或在數據抄寫過程中失誤造成錯誤。
并且，由于在整個試驗周期中，同一個試件要測量十幾次，上述3種誤差因素會被不斷放大，很有可能出現前后試驗結果相互矛盾的現象，且無法找到問題根源。
The shortcomings of available horizontal concrete shrinkage expansion meter:
(1) Hard steel or quartz glass is recommended for the calibration rod material in the standard, but the available calibration rod in the market is mostly made of stainless steel. Its linear expansion coefficient is too high, which is easy to cause errors due to the influence of temperature fluctuation.
(2) The accuracy of the micrometer is poor, even if the best electronic micrometer is used, because its measurement error is more than 3um. Generally, the error of the micrometer is more than 5um, which will cause a great error for the shrinkage of concrete specimens in the later period.
(3) Manual reading records during the test process are prone to errors, which is caused by human errors or errors in data transcription.
Moreover, the same specimen needs to be measured more than a dozen times in the whole test cycle. The above error factors will be enlarged continuously, and it is likely that there will be conflicting phenomena between early and later results. We can’t find the root cause of the problem.
技術特點：
1、測量準確：高精度位移傳感器配合無膨脹合金校準桿使用，測量誤差在±1um以內，，保證了長齡期測試結果的準確性和對比性；
2、無需長期在線觀測，到達齡期后測試即可，提升了設備使用效率；
3、試驗過程無需手動記錄，全部數據存儲于測試主機當中，試驗人員通過U盤即可將試驗結果導出，然后通過電腦excel軟件查看即可；
4、測試結果自帶操作人員標識，同時記錄試驗時間、試驗環境的溫濕度、試件編號、齡期、試件長度；
5、設備具有權限設置功能，非操作人員無法登錄，保證了試驗結果的安全性；
Features:
1. More accurate: With the help of high-precision displacement sensor and invar calibration rod, the measurement error is less than 1um, which ensures the accuracy and comparability of long-term test results.
2. No needs for long-term on-line observation. Testing at the age can improve the efficiency of the equipment.
3. There is no need to record manually during the test process. All the data are stored in the test host. All results could be derived by the user through U disk, and then can be viewed by Excel.
4. The test results are marked by operators, and the test time, temperature and humidity of the test environment, specimen number, age and length are recorded at the same time.
5. The device has the function of permission setting, and the non-operator can not log in, which ensures the safety of the test results.
技術參數：
型號 YC-HSP540D(2)
測量范圍 538-542mm
位移傳感器量程 0-2mm
位移傳感器測量誤差 ±1um
校準桿長度 540±0.1mm
溫度測量范圍 0℃~50℃
溫度測量誤差 ±0.5℃（25℃）
濕度測量范圍 0~100%RH
濕度測量誤差 ±3%（5%RH~95%RH，25℃）
主機尺寸 長×寬×高=370mm×340×240mm
模具尺寸 長×寬×高=670mm×240×180mm
Parameters：
Model: YC-HSP540D
Measurement range of tester: 538-542mm
Measurement range of sensor:0-2mm
Error in measurement: ≤1um
Resolution：0.1um
Size of Invar reference bar: 540±0.1mm
Error of temperature sensor：≤0.5℃
Measurement range of temperature sensor：0-50℃
Error of humidity sensor: ≤3%RH
Measurement range of humidity sensor: 0-100%RH
Specimen size: 100×100×515mm
Host size: 370×340×240mm
Dilatometer bench size: 670×240×180mm
Power supply：AC220V/AC 110V
標準配置：
1、觸摸屏測試主機：1臺
2、臥式測量模具：1臺
3、低膨脹合金桿：1根
4、溫濕度傳感器：1臺
5、高精度位移傳感器：1臺
6、電源線：1根
1、 Touch screen test host：1
2、 Horizontal measuring die:1
3、 Invar reference bar:1
4、 Temperature and humidity sensor：1
5、High-precision sisplacement sensor : 1
6、Power cord:1
|
