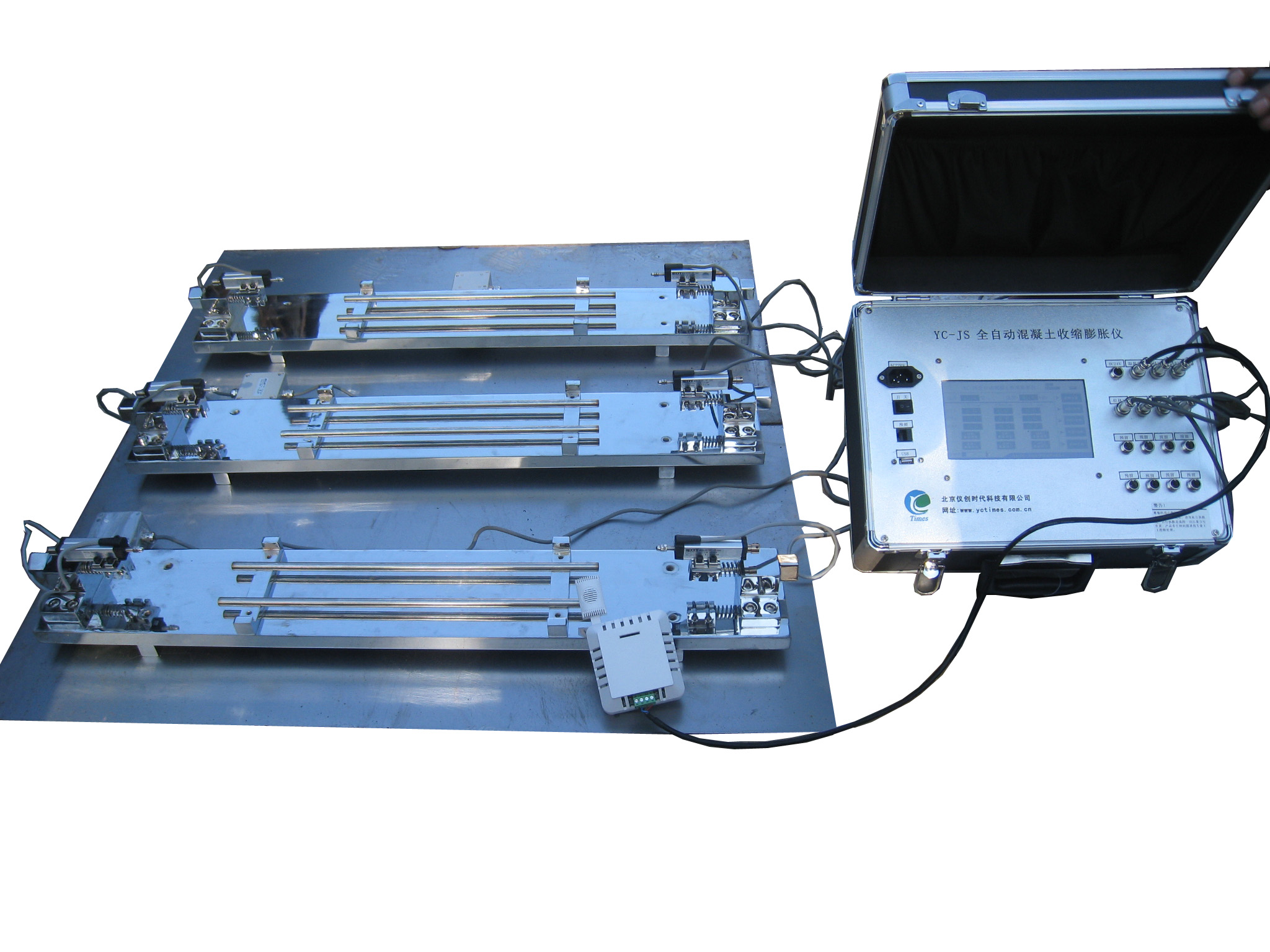

Device name:Automatic Concrete Shrinkage Expansion Instrument
Model:YC-SSJ
Origin:Beijing
Purpose:To record automatically the shrinkage and expansion value of concrete specimens
用途:用于自動記錄混凝土試件的收縮膨脹大小
專利號:ZL 201220557247.X,201320664989.7, ZL 201220721026.1
執行標準:
《普通混凝土長期性能和耐久性能試驗方法標準》GB/T50082-2009中接觸法收縮試驗要求
《補償收縮混凝土應用技術規程》 JGJ/T178-2009
《地下防水工程質量驗收規范》GB50208-2011
《混凝土外加劑應用技術規范》GB50119等
技術性能:
*1、具有自主知識產權:《一種多通道全自動混凝土收縮膨脹儀》ZL201220557247.X,《一種位移傳感
器軸向運動微調裝置》201320664989.7,《一種新型混凝土早齡期收縮膨脹儀》ZL 201220721026.1
*2、采用7寸彩色液晶觸摸控制系統,可實時顯示并記錄試件收縮膨脹值及環境溫濕度,節省人力;
*3、試驗數據可通過優盤,直接導入電腦中,使用excel文件進行數據分析處理;
*4、測試主機內置YC-JS專用軟件更新升級方便,可通過USB接口進行升級;
*5、獨特程序設計,保證試驗數據連續,不因斷電而失效;
*6、測試主機預設4個備用接口,方便用戶進行功能擴展(增值服務);
7、可根據需要選擇I、II或者III型,可同時進行1組、2組和3組試驗;
*8、測量模具尺寸可根據試塊尺寸進行設計; 立式測量模具、臥式測量模具、限制膨脹率模具可選。
Features:
1、 With independent intellectual:《一種多通道全自動混凝土收縮膨脹儀》ZL201220557247.X,《一種位移傳感器軸向運動微調裝置》201320664989.7,《一種新型混凝土早齡期收縮膨脹儀》ZL 201220721026.1
2、 The 7-inch color touch screen can display and record the shrinkage and expansion value of the specimen and the ambient temperature and humidity in real time
3、 The test data can be directly imported into the computer through the USB disk and processed by Excel
4、 The YC-JS software is installed in the test host, and easy to be updated through USB
5、 Unique programming ensures that the test data are continuous, and the test do not fail due to power failure
6、 Three types can be chosen, YC-SSJ I and YC-SSJ II and YC-SSJ III for 1 group and 2 group and 3 group.
7、 Dilatometer bench can be designed according to the user requirement.
技術參數:
型 號: I型 II型 III型
測 試 容 量: 一組(3塊) 二組(6塊) 三組(9塊)
位移傳感器行程: 2mm
位移傳感器測量誤差:不大于1um
位 移 分 辨 率: 0.1um
溫度傳感器精度: ±0.5℃
濕度傳感器精度: ±3%
試 塊 尺 寸:混凝土試塊:100×100×515mm
工 作 溫 度: 0℃— +50℃
臥式測量模具尺寸:126×800×20mm;
立式測量模具尺寸:154×124×650mm
早齡期測量模具尺寸:720×130×16mm
Parameters:
Model: I Ⅱ Ⅲ
Capacity: 3 6 9
Measurement range of sensor:2mm
Error in measurement: ≤1um
Resolution:0.1um
Error of temperature sensor:≤0.5℃
Error of humidity sensor: ≤3%RH
Specimen size: 100×100×515mm
Working temperature: 0-50℃
Dilatometer bench size: 126×800×20mm
Power supply:AC220V/AC 110V
產品配置:
*1、 YC-SSJ型觸摸屏測試主機:1臺
2、 溫濕度傳感器:1只
*3、 定制位移傳感器:6只或12只或18只
*4、 定制專用模具:根據用戶需求進行選擇
|
